Revise your OneDrive (Sync) restrictions when shifting to a Modern Workplace!

OneDrive client is unable to sync your folders.

What is a modern workplace these days without having your personal- or group data synced to OneDrive and taking the full advantage Microsoft’s cloud storage has to offer!? One of the most asked feature is silently configuring your OneDrive client to automatically synchronize your (personal) data.

Silent configuration

Over time the silent configuration of OneDrive for Business has been improved. In the early days we were designated using semi-automatic methods using registry keys and scripts by Per Larsen, old school group policies, or by custom OMA-URI policies to do the magic. Nowadays OneDrive can easily be configured using Administrative Templates (31 settings) via Microsoft Intune. (almost the same as GPO but wrapped in a modern UI called Microsoft Intune 😉)

SETTING NAME
Prevent users from redirecting their Windows known folders to their PC
Silently move Windows known folders to OneDrive
Silently sign in users to the OneDrive sync client with their Windows cred..
STATE
Enabled
Enabled
Enabled
Device
Device
Device
\OneDrive
\OneDrive
\OneDrive
OneDrive for Business client configuration using Microsoft Intune Administrative Templates.

Modern Workplace

Last week I was preparing a modern workplace demo fully automated and managed by cloud. This puts Windows Autopilot on the menu including automatic enrollment & management, encryption, policies, software deployment and…silently configuration of OneDrive for Business client.

Challenge

But what if silent configuration isn’t working as expected? This might become challenging where traditional and modern workplace comes together, you can end up in a situation where they do not fit. This will be the case when you’re preventing managed computers to sync OneDrive which are joined to a specific (Active Directory) domain(s).

It’s a no-brainer to opt-in for automatically (silently) configure the OneDrive for Business client. But in this case the OneDrive for Business client configuration was far from silent if you asked me! We ran into a challenge where OneDrive for Business client won’t be configured silently. Even when we tried to configure OneDrive sync manually, we didn’t succeed and ran into the following error “Sorry, OneDrive can’t add your folder right now“. So I reached out and contacted support 😉

OneDrive is restricted from syncing to only specified AD domains only.

Root cause

After some research I came across a blog of Chen Tian Ge who used Fiddler to take down a similar scenario. So after installed Fiddler myself, it was clear to me what caused the problem. I had found the undisputed proof. The reason for the failure is the fact the customer had implemented OneDrive sync client restrictions by using (AD) domain GUID. The modern workplace of course, did not meet the domain GUIDs requirement because it belongs to an Azure AD domain instead of AD joined domain.

Reproducing the root cause using sync restrictions based on (AD) domain GUID’s.

Restrict OneDrive syncing to specific domains

This feature works fine for computers which are joined to an Active Directory (AD) domain, but causes challenges when shifting to a modern workplace joined to Azure Active Directory (Azure AD).

OneDrive
Home
Sharing
Sync
Storage
Device access
Compliance
Notifications
Data migration
Sync
Use these settings to control syncing of files in OneDrive and SharePoint.
Download the sync client
Fix sync problems
Show the Sync button on the OneDrive website
Allow syncing only on PCs joined to specific domains
Enter each domain as a GUID on a new line.
cd004ec9-8i7d-3rc6-8wd7-d3vintfe50si1e
-B2df-cd3a2e 134a09
Block sync on Mac OS
Block syncing of specific file types
Restrict OneDrive from syncing to specific (AD) domains.

Conditional Access

The underlying reason for implementing these controls is to make sure companies remain control of where your corporate data is going through. Lastly, preventing from ending up at unmanaged or non-compliant devices. Allow syncing only on computers joined to specific domains works for AD joined devices but doesn’t fit for a (native) modern workplace which is Azure AD Joined.

New
e Info
Name
Assignments
Users and groups C)
All users
Cloud apps or actions O
1 app included
Conditions
4 conditions selected
Access controls
Grant O
3 controls selected
Session i
O controls selected
Enable policy
X
Cloud apps or actions
Select what this policy applies to
x
Cloud apps
Include
O None
Exclude
>
O All cloud apps
@ Select apps
Select
Office 365 SharePoint Online
Office 365 SharePoint On... .
Selecting SharePoint Online will also
affect apps such as Microsoft Teams,
Planner, Delve, MyAnalytics, and
Newsfeed _
Azure AD Conditional Access provides tailored controls to address your corporate needs.

Azure AD Conditional Access control capabilities in Azure AD offer simple ways for you to secure resources in the cloud. The OneDrive for Business client works with the Conditional Access control policies to ensure syncing is only done with managed and/or compliant devices. For example, you might require sync to be available only on domain-joined devices or devices that meet compliance as defined by Microsoft Intune.

Alongside Conditional Access, Microsoft Cloud App Security (MCAS) can be used to implement complementary data leak prevention (DLP) policies to make sure you stay in control no matter where your corporate data goes.

Get out of the old, get in with the new

Shifting from a traditional to a modern workplace isn’t just a matter of migrating the current, but a real transformation. Controls which worked well for many years in a traditional environment are often outdated by modern solution(s) that often work better and meet the revised needs/standards according a modern workplace.

Happy & safe syncing!

Sources

Control Access to SharePoint Online/OneDrive from unmanaged devices

In a mobile-first cloud first world the need of accessing corporate resources on unmanaged devices is rising. This is the cutting edge of managing your corporate data (keeping it safe) and give your users the freedom to be productive on any device.

With Conditional Access we can control access to corporate data (such as Exchange Online, SharePoint Online, Yammer, Delve, Teams, etc.) based on a device (health) status such as being managed or complaint. These scenarios (conditions) are based on devices being managed by your company (MDM managed). With the introduction of Session Controls, organizations are enabled to grant limited access to corporate resources without losing control on unmanaged devices.

Conditional Access Session Controls

Continue reading “Control Access to SharePoint Online/OneDrive from unmanaged devices”

Microsoft Teams: How to overcome challenges with Windows Information Protection & Conditional Access

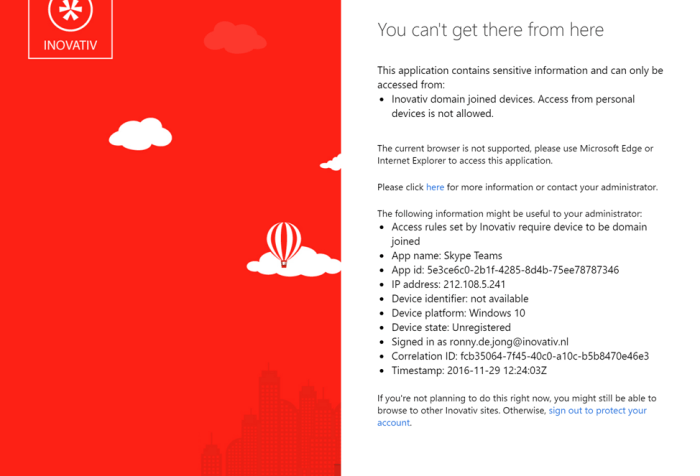

Recently Microsoft announced Microsoft Teams, a new chat-based platform in Office 365. For all mobile platforms (Android, iOS and Windows 10 Mobile) Microsoft released an native app, including a desktop app for Windows 10 and Mac OS X. The Microsoft Teams apps can be downloaded here. After I installed the Microsoft Teams desktop app on Windows 10 I bumped into the following funny message ‘Yikes! Looks like someone pulled the plug on the internet’.

clip_image001

Continue reading “Microsoft Teams: How to overcome challenges with Windows Information Protection & Conditional Access”

Secure your SaaS & On-premises applications with Azure AD Conditional Access

Last week Microsoft announced the public preview of Azure AD Conditional Access to protect Azure AD SaaS applications based on device-based policy rules. Conditional Access (CA) is already available for a quite long time for those who are using Microsoft Intune, but was scoped to Microsoft cloud services such as Dynamics CRM Online, Exchange Online, Exchange on-premises, SharePoint Online and Skype for Business Online.

With the introduction of CA for Azure AD SaaS applications it’s a great step forwards raising the security bar in a mobile first cloud first world securing your SaaS applications and how they being accessed.


In this blog I will not elaborate the detailed operation of CA but will show you how easily it is to configure and apply Azure AD Conditional Access for an on-premise web application which we have published by Azure AD Proxy. Continue reading “Secure your SaaS & On-premises applications with Azure AD Conditional Access”

Updated Microsoft Intune On-premises Connector for On-premises or Hosted Exchange


For those who are using On-Premises Exchange or Hosted Exchange with Microsoft Intune (standalone) hereby a quick post to inform you the Microsoft Intune Exchange connector (5.0.6175.0) has been updated last month (March 2016). At time of writing no release notes were available what has been addressed with the updated connector.

Continue reading “Updated Microsoft Intune On-premises Connector for On-premises or Hosted Exchange”

Updated: Exchange Connector permissions changed in Configuration Manager Current Branch (1511 and higher)

Exchange Connector Current Branch

Note! Updated with additional permissions (Get-Mailbox) 04/28/2016

During a Configuration Manager Current Branch (1511) implementation I bumped into an issue configuring the Exchange Connector. After configuring the Exchange Connector, devices which are connected by Exchange were not successfully discovered and therefore not appearing in the admin console.

Continue reading “Updated: Exchange Connector permissions changed in Configuration Manager Current Branch (1511 and higher)”

Intune Extensions install process improved /w April Service Update

Last week Microsoft updated their Intune cloud services with the April service update. This April service update (5.0.5118.0) introduces a lot of new features which were recently announced by the Microsoft Intune team. More details on this can be found here.


Most of you are familiar with the fact it can take up to 24-hours until the Intune extensions finally comes down in your Configuration Manager 2012 R2 instance. Initially there is no method for forcing the extensions to come down. Especially working with customers engagements (proof of concepts) it is very annoying to have to wait a day before you can enable these extensions.

The Microsoft Intune Product Team did a great job to speed up this process, which comes with the April update. The time it takes when Intune extensions comes down into your Configuration Manager 2012 R2 instance is significantly improved. By shorten the interval at the backend new tenants should be able to see extensions within 10 mins after connector role has been setup successfully. For the extensions published after installation, it is up to 6 hours.

Continue reading “Intune Extensions install process improved /w April Service Update”
